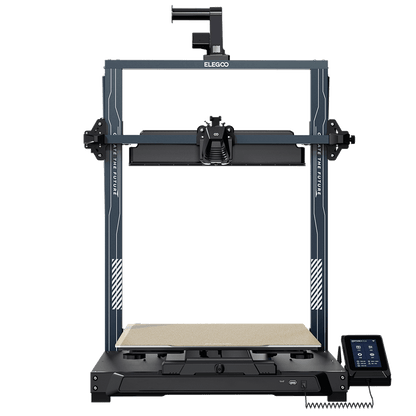

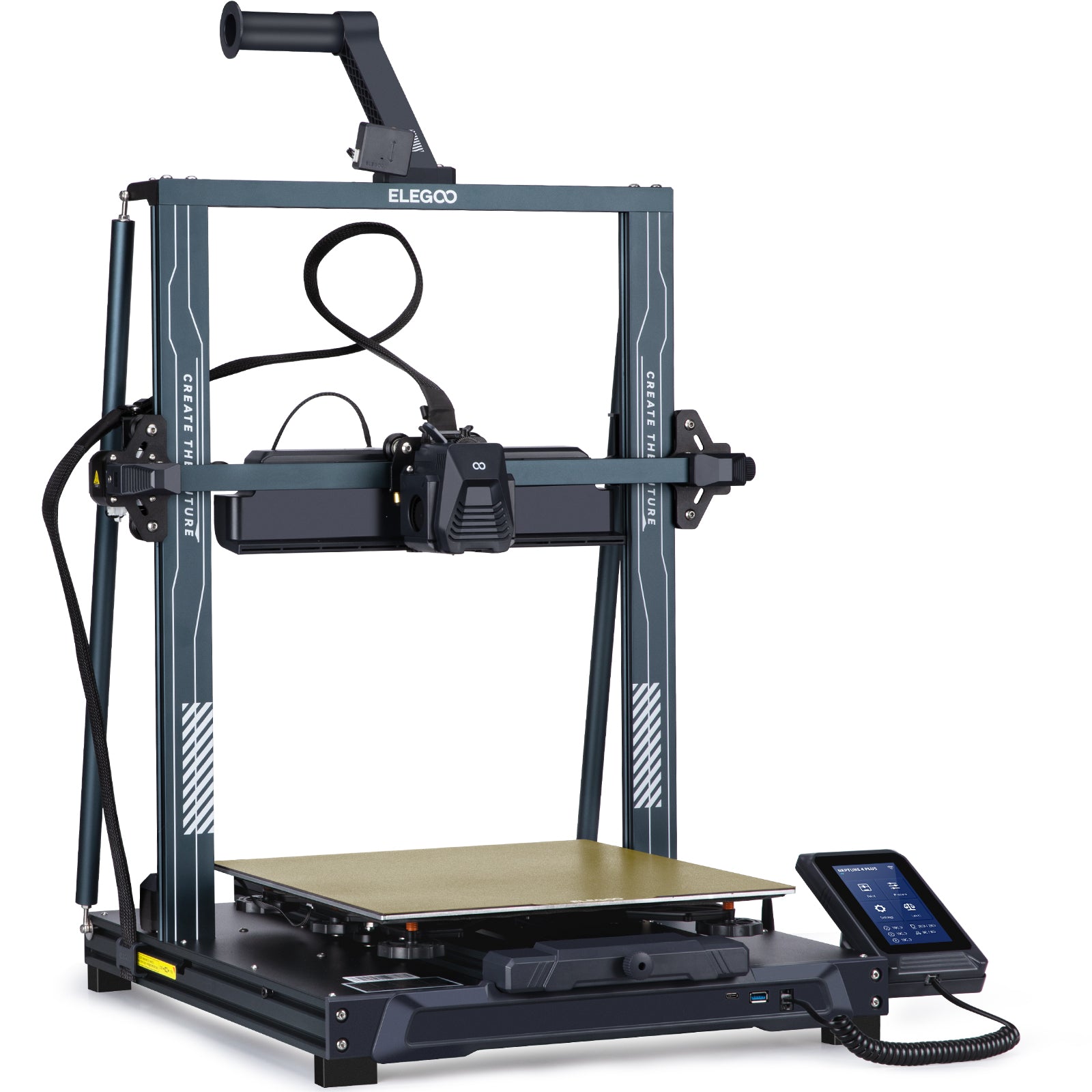

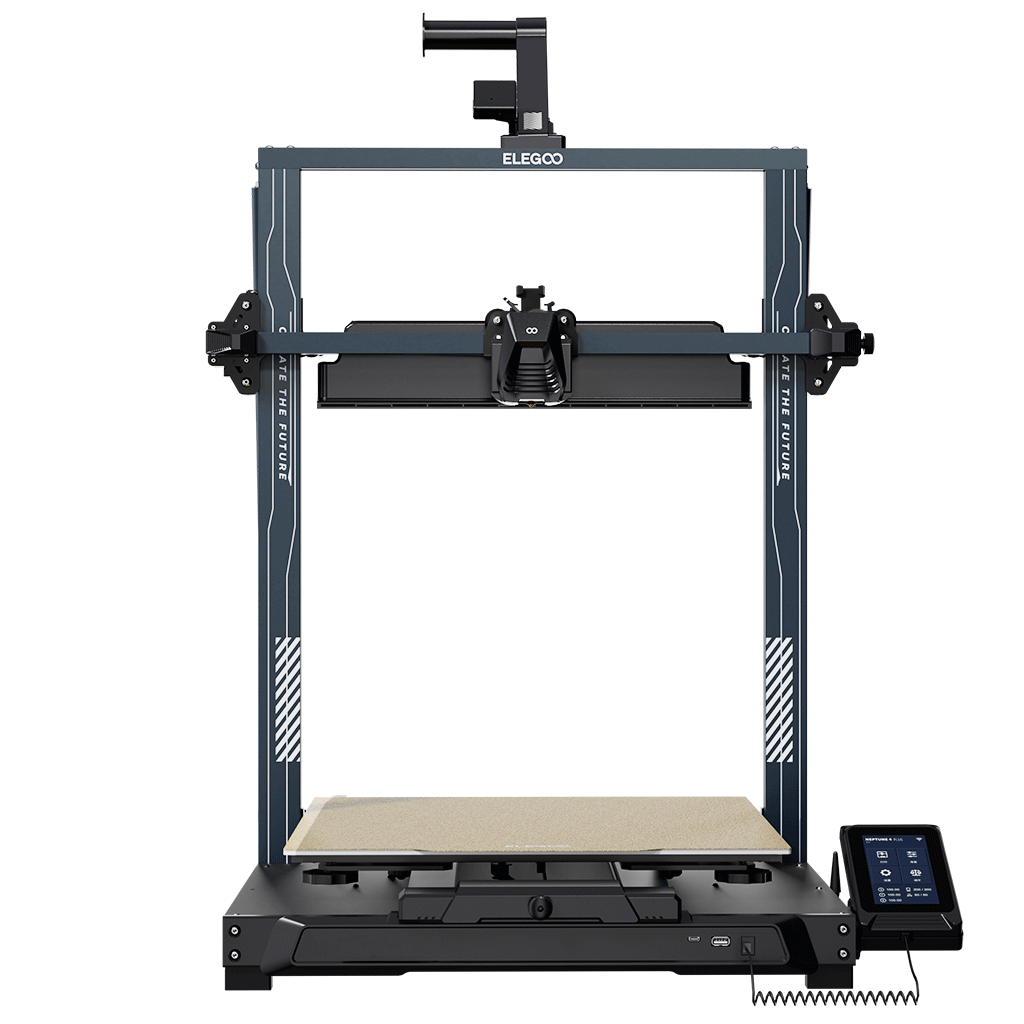

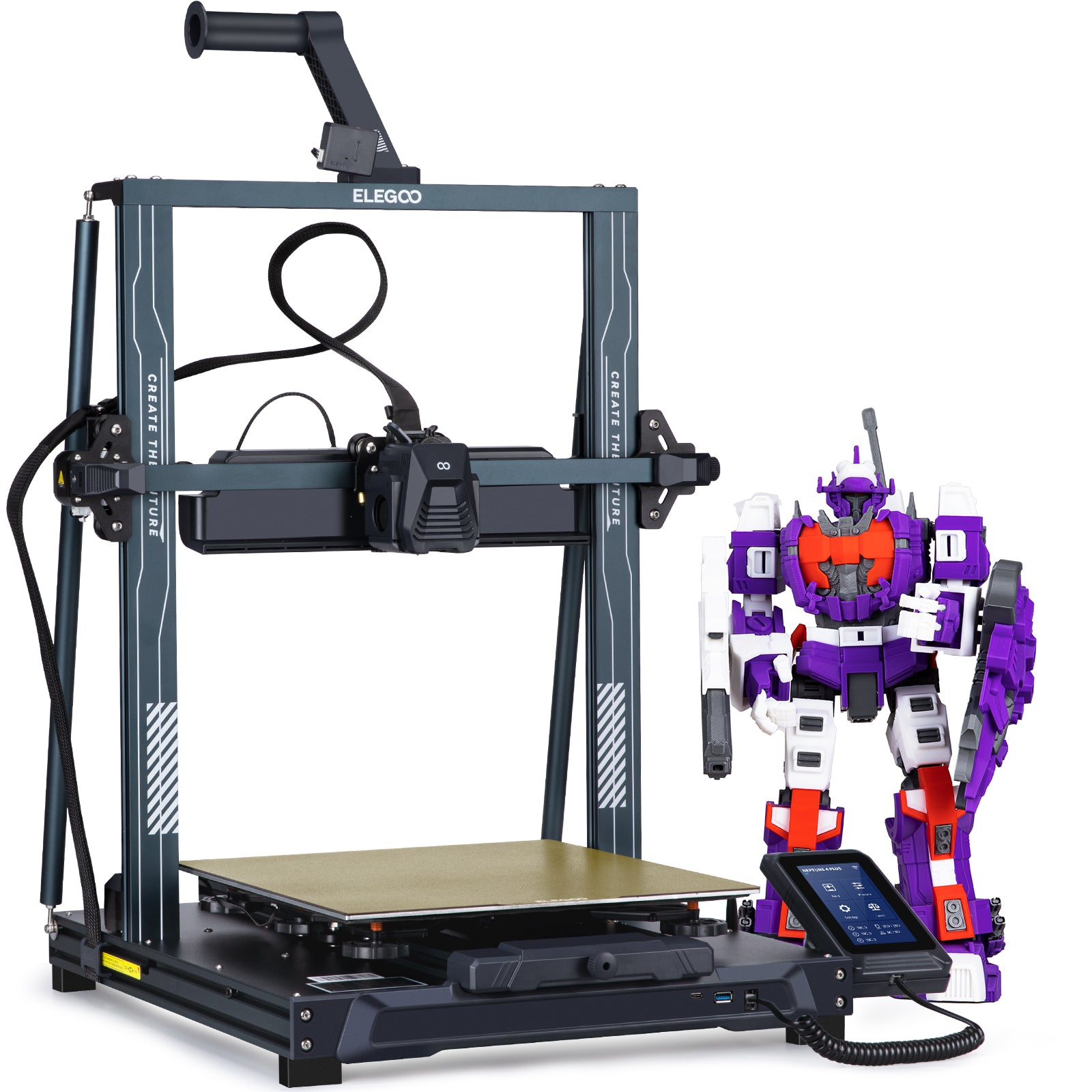

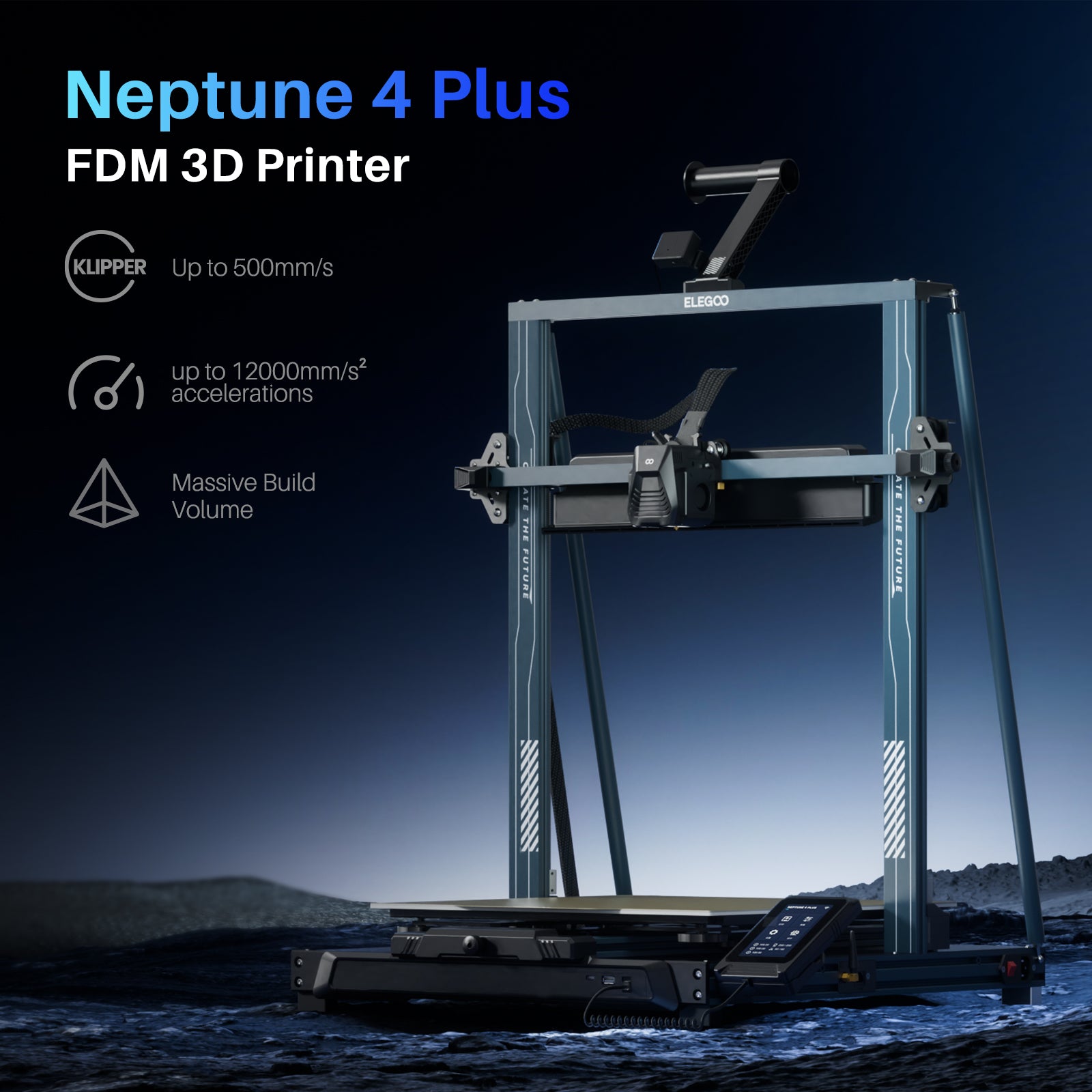

Neptune 4 Plus 3D Printer

The ELEGOO Neptune 4 Plus expands high-speed FDM printing into large-format production while maintaining precision and reliability. Powered by Klipper firmware and a reinforced motion system, the Neptune 4 Plus enables creators to produce larger parts faster without sacrificing print quality.

Featuring an all-metal hotend, intelligent automatic bed levelling, and an upgraded cooling system, the printer is designed for demanding workflows such as prototyping, cosplay components, functional parts, and batch production. The larger build volume, combined with high-speed performance, makes the Neptune 4 Plus ideal for makers ready to scale beyond standard desktop printing sizes.

Software & Support

You can easily access the recommended slicing software directly from the ELEGOO Africa website, where the latest version is available for download along with setup guides and supporting resources. This ensures you are working with the most up-to-date software optimised for the Neptune 4 Plus, allowing for a smooth setup process, simplified print preparation, and the best possible printing performance from day one.

Key Features

• High-speed printing up to 500 mm/s
• Klipper firmware pre-installed for advanced motion control

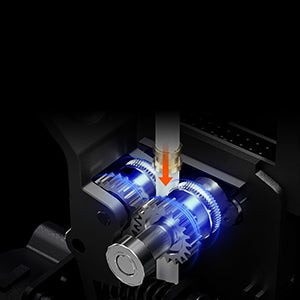

• Dual-gear Direct Drive Extruder
• Intelligent 121-point automatic bed levelling
• Large-format build volume for bigger projects
• All-metal hotend supporting higher temperatures
• Dual Z-axis motors with reinforced structure
• High-performance multi-fan cooling system
• Quiet stepper drivers

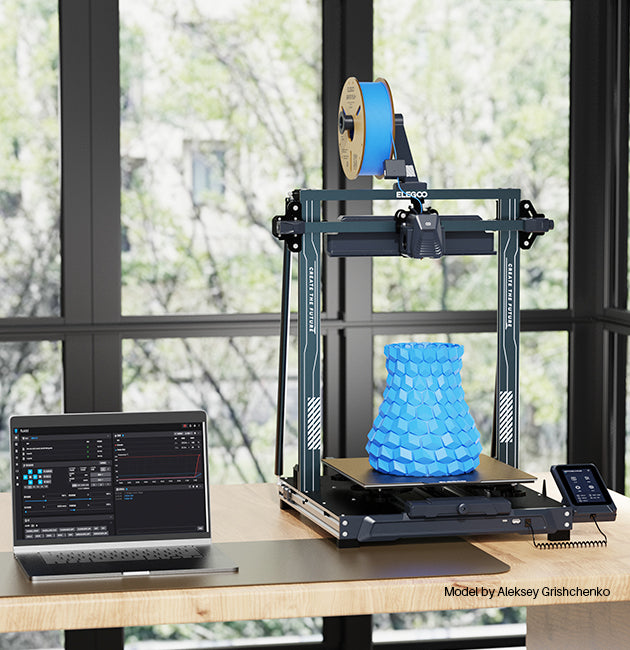

• Wi-Fi and LAN remote control capability

Technical Specifications

Printing System

Print Performance

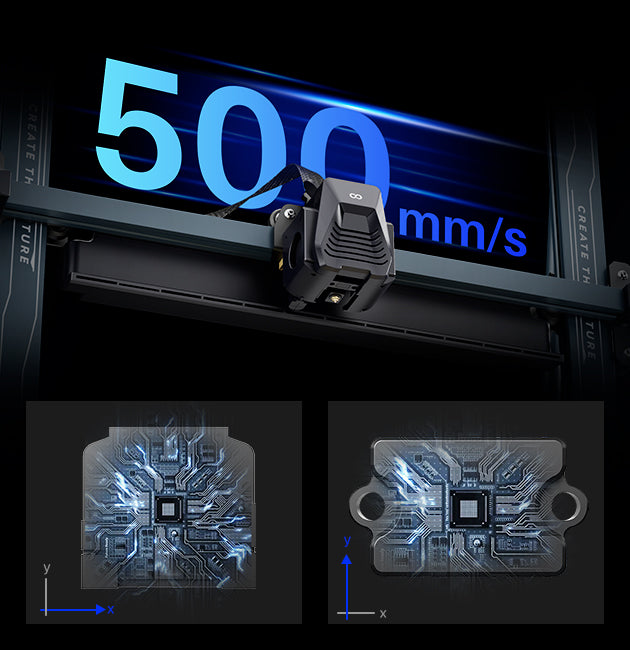

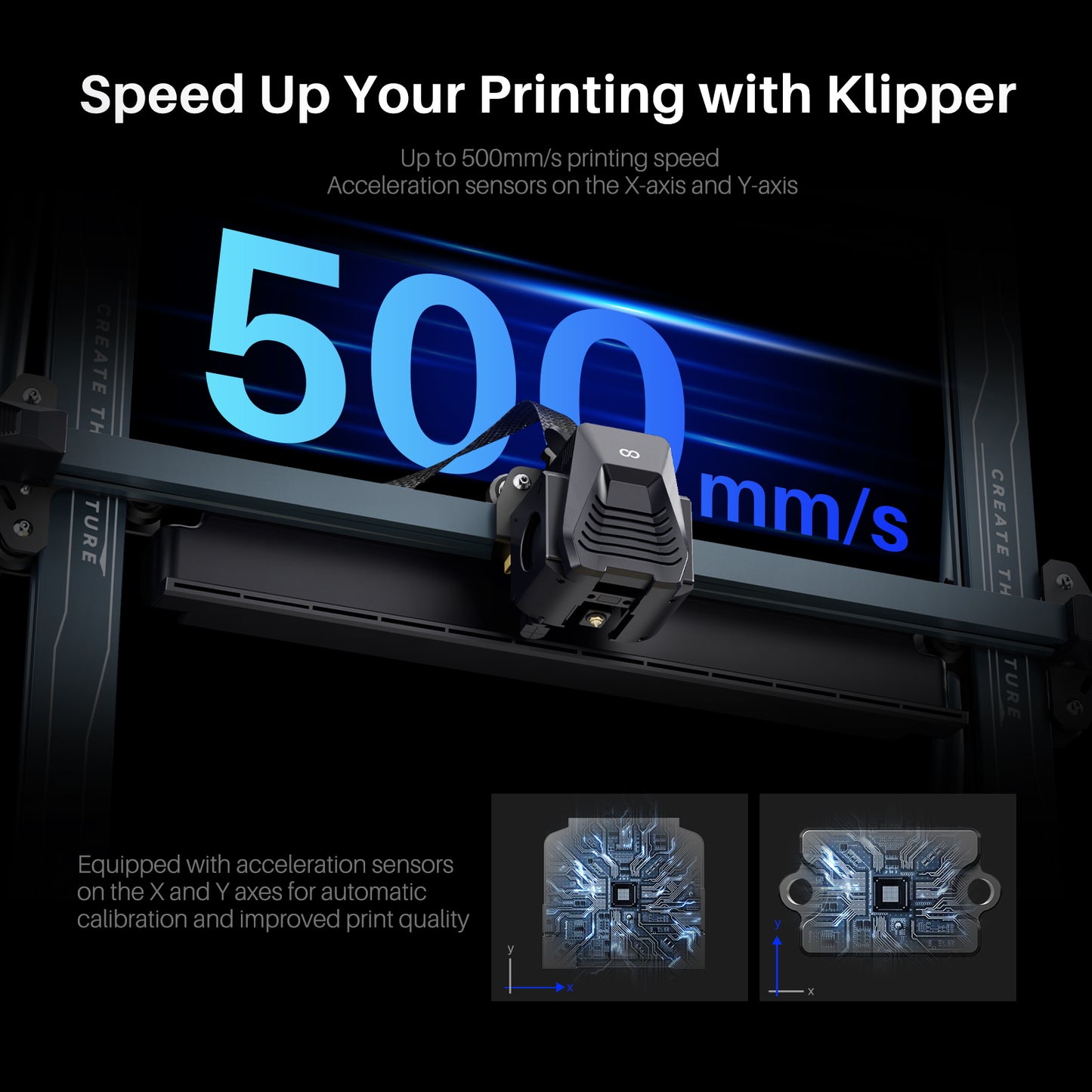

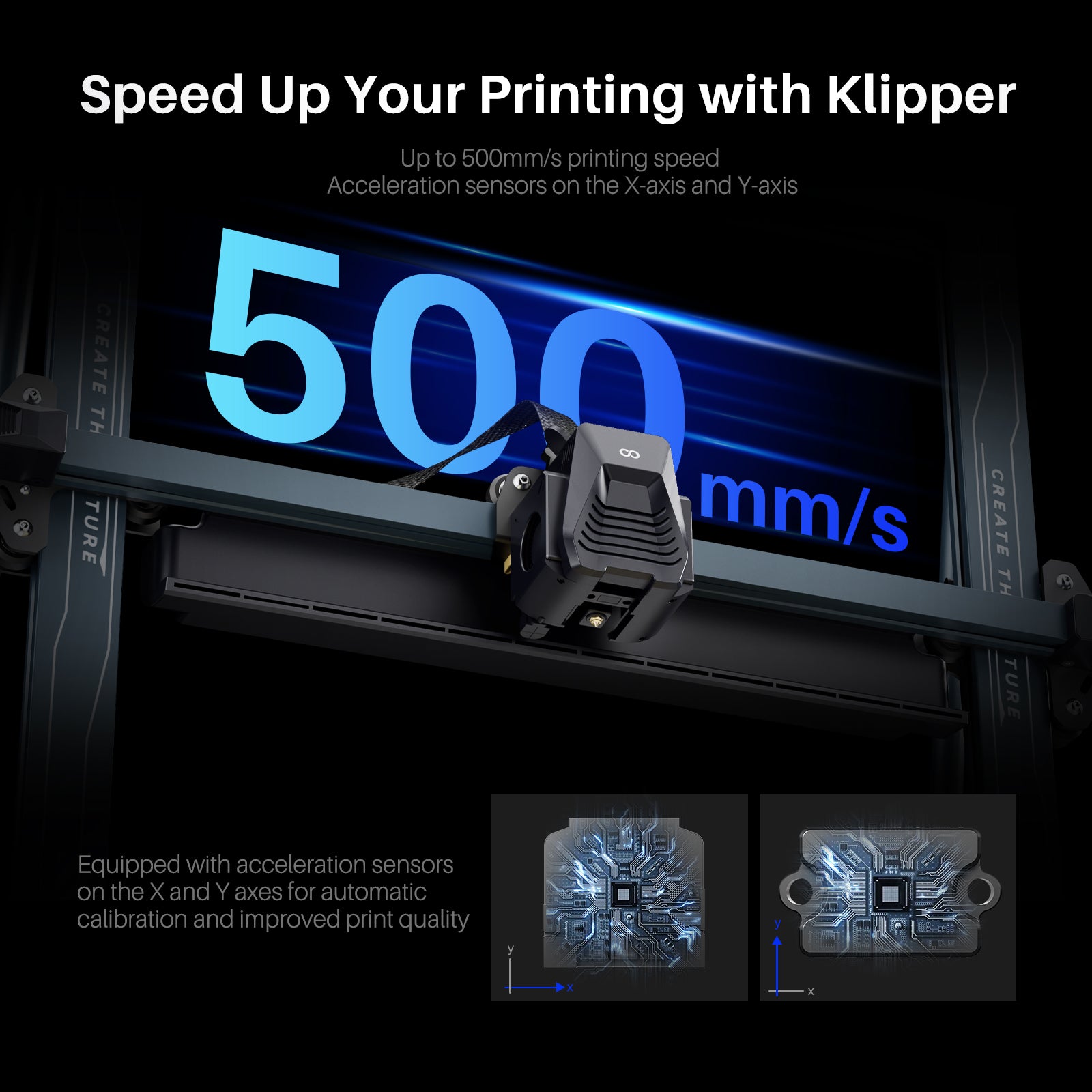

• Maximum Print Speed: Up to 500 mm/s
• Maximum Acceleration: 20,000 mm/s²
• Layer Height: 0.05 – 0.30 mm
• Printing Accuracy: ±0.1 mm
• Input Shaping: Supported (Klipper feature)
• Pressure Advance: Supported

High-speed motion system enables fast production of large-format prints while maintaining consistent detail.

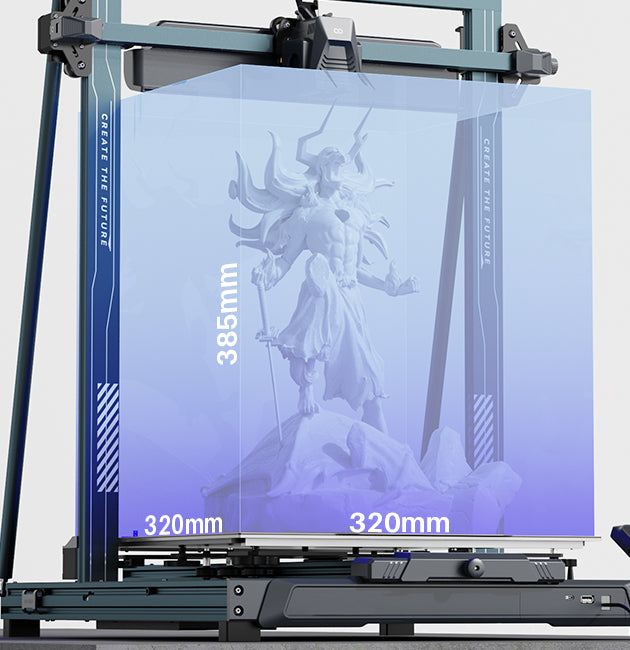

Build Volume

• Build Volume (L × W × H): 320 × 320 × 385 mm

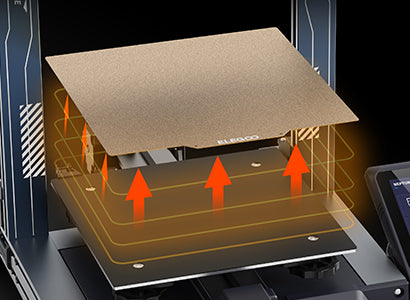

• Build Plate: Magnetic PEI spring steel plate
• Heated Bed: Intelligent heated bed system
• Build Surface: Textured PEI coating

Large build capacity allows printing of oversized models or multiple parts simultaneously.

Cooling System

• Part Cooling: Dual high-speed fans
• Auxiliary Cooling: Rear auxiliary cooling fans
• Hotend Cooling: Independent cooling fan system

Enhanced airflow supports stable printing at higher speeds and improved overhang performance.

User Interface & Connectivity

• Display: 4.3-inch full-colour touchscreen
• Interface Type: Detachable control screen
• Connectivity Options: USB Drive, Wi-Fi, LAN (Ethernet)
• Remote Control: Web interface via Klipper
• Supported File Formats: STL, OBJ, AMF
• Output Format: G-code
• Supported Slicers: Cura, PrusaSlicer, OrcaSlicer, and compatible software

Mechanical & Physical Specifications

• Frame Material: Reinforced aluminium extrusion frame
• Machine Dimensions: Approx. 635 × 640 × 740 mm
• Net Weight: Approx. 14.4 kg
• Structure Type: Cartesian gantry printer
• Lighting: Integrated LED light bar

Reinforced frame construction maintains stability during large, high-speed prints.

Power Requirements

• Input Voltage: 100–120V / 220–240V AC
• Frequency: 50/60 Hz
• Rated Power: 500W power supply

Filament Compatibility

Supports 1.75 mm filaments, including:

• PLA
• PETG
• TPU (flexible)
• ABS
• ASA
• Nylon (with proper setup)
• High-temperature engineering filaments

All-metal hotend enables expanded material compatibility.

Smart Features

• 121-point automatic levelling
• Power loss recovery
• Filament run-out sensor
• Input shaping calibration
• Remote monitoring via network
• Quiet stepper drivers
• High-speed Klipper ecosystem

What’s in the Box

• 1 X ELEGOO Neptune 4 Plus 3D Printer
• 1 X Magnetic PEI Spring Steel Build Plate
• 1 X Tool Kit
• 1 X Spare Nozzle
• 1 X Filament Holder
• 1 X USB Drive
• P1 X owner Cable
• 1 X User Manual
